Schneider VFD

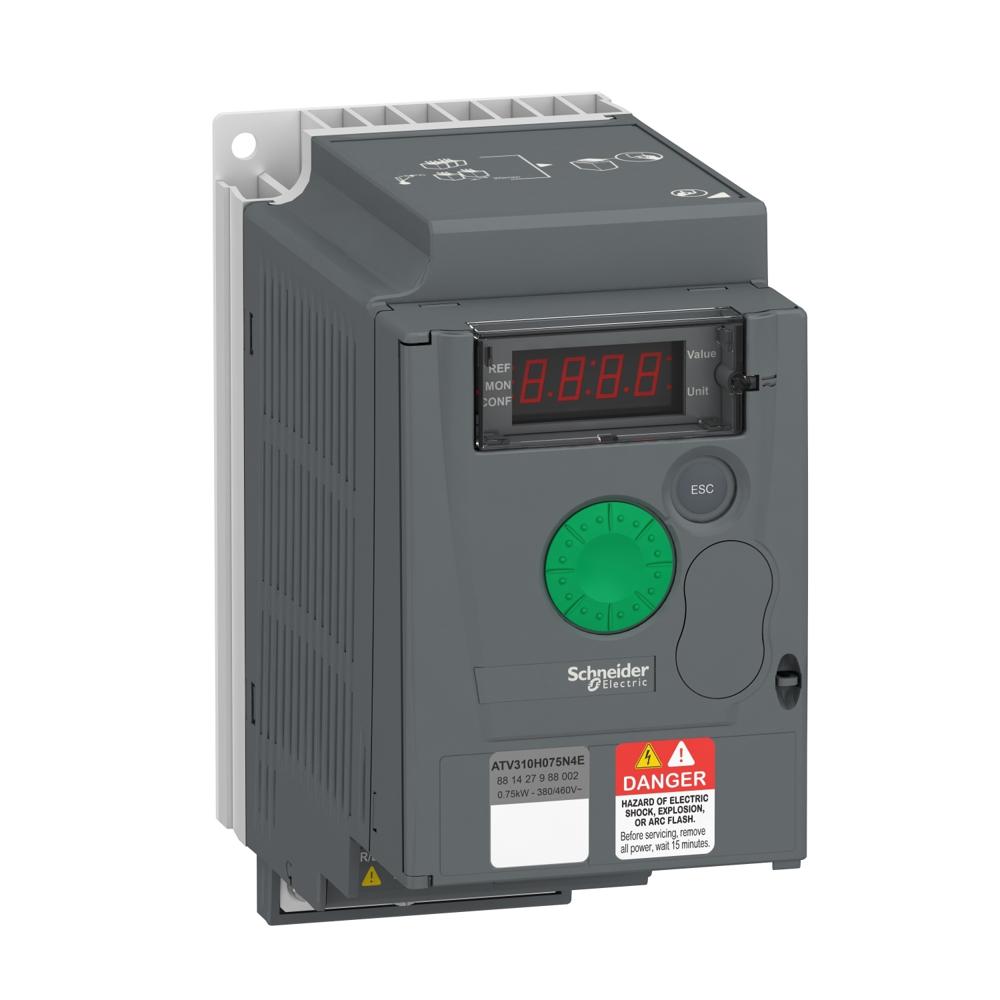

Name: Schneider VFD
Brand: NOBLE AUTOMATION PRIVATE LIMITED
Price: 9200.0 INR
Availability: InStock

9200.0 INR/Piece

Get a Price/Quote

Product Details:

Application Conveyor systems Pump and fan control Packaging machinery Textile equipment Material handling systems Woodworking machines General industrial automation
Accuracy Precise speed regulation, typically 0.5% of nominal speed
Pressure Not applicable (electrical product, not for fluid control)
Product Type AC DRIVE
Connection Input: 3-phase, 380-460V AC; Output: 3-phase to motor; Standard screw terminal connections
Function Variable Frequency Drive (VFD) for controlling the speed and torque of three-phase electric motors
Size Frame size varies by power rating, typically compact design for space-saving installation (as per ATV310 series)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Schneider VFD Price And Quantity

Minimum Order Quantity 1 Piece
Price 9200.0 INR/Piece

Schneider VFD Product Specifications

Size Frame size varies by power rating, typically compact design for space-saving installation (as per ATV310 series)
Connection Input: 3-phase, 380-460V AC; Output: 3-phase to motor; Standard screw terminal connections
Product Type AC DRIVE
Function Variable Frequency Drive (VFD) for controlling the speed and torque of three-phase electric motors
Application Conveyor systems Pump and fan control Packaging machinery Textile equipment Material handling systems Woodworking machines General industrial automation
Accuracy Precise speed regulation, typically 0.5% of nominal speed
Pressure Not applicable (electrical product, not for fluid control)

Communication Integrated Modbus RTU serial communication
Output Voltage 380-460V AC, 3-phase
Display LED digital display for status, programming, and diagnostics
Operating Temperature -10C to +50C without derating
Mounting Panel mounting with screws
Model ATV310H075N4E (Schneider ATV310 Series)
Protection Features Overload, short circuit, undervoltage, overvoltage, overheating
Control Type V/F (voltage/frequency), sensorless vector control
Output Frequency Range 0.5 to 400 Hz
Input Voltage 380-460V AC, 50/60Hz, 3-phase
Power Rating 0.75 kW (1 HP)
Ingress Protection IP20

Schneider VFD Trade Information

Delivery Time 1 Days

Product Description

ATV310H075N4E is a variable frequency drive (VFD) from the Easy Altivar 310 series. It is designed for controlling the speed and torque of three-phase induction motors in industrial applications.

Parameter	Value
Product Series	Easy Altivar 310
Model	ATV310H075N4E
Type	Variable Frequency Drive (VFD)
Motor Power	0.75 kW (1 HP)
Input Supply	380460 VAC, 3-Phase
Output Current	2.3 A (continuous)
Output Frequency	Up to 400 Hz
Protection Rating	IP20
Communication	Modbus RTU via RS-485
Cooling	Self-cooled

Versatile Motor Control for Industrial Applications

The ATV310H075N4E VFD meets the diverse requirements of industrial automation, including pumps, fans, conveyors, packaging machinery, and textile equipment. Its advanced motor control algorithms ensure smooth speed transitions, precise torque management, and efficiency across multiple applications, making it a cost-effective solution for industries seeking reliable and energy-efficient performance.

Easy Installation and User-Friendly Operation

Featuring a compact, panel-mount design and standard screw terminal connections, the ATV310H075N4E enables straightforward, space-saving installation. The integrated LED digital display allows clear programming, monitoring, and diagnostics, while Modbus RTU communication simplifies integration with PLCs and automation systems. These features help users deploy and maintain their VFDs with minimal downtime.

FAQ's of Schneider VFD:

Q: How do I install the Schneider ATV310H075N4E VFD on my equipment?

A: The ATV310H075N4E is designed for panel mounting using screws. Connect the 3-phase input and output cables to the standard screw terminals as described in the manual, ensuring all connections comply with safety and wiring codes for 380-460V AC systems.

Q: What types of industrial applications are suitable for this VFD?

A: This model is ideal for conveyor systems, pump and fan controls, packaging and textile machinery, woodworking equipment, material handling systems, and general industrial automation that require adjustable speed and torque of three-phase motors.

Q: When should I use sensorless vector control versus V/F control?

A: Use sensorless vector control for applications demanding precise speed regulation and torque, such as material handling or constant load operations. V/F control is recommended for simpler applications where basic speed adjustment is sufficient, like pumps or fans.

Q: Where can I access programming and diagnostics on this VFD?

A: Programming, monitoring, and diagnostics are available directly through the integrated LED digital display on the front of the VFD, allowing easy local access to status indicators and parameter settings without special tools.

Q: What's the process for integrating this VFD with existing automation systems?

A: Connect the VFD's Modbus RTU serial communication port to your PLC or automation controller. Configure the communication parameters and VFD address as outlined in the user manual for seamless integration and remote control.

Q: How does the ATV310H075N4E enhance motor efficiency and reliability?

A: Its precise speed regulation (typically within 0.5% of nominal speed) and comprehensive protection features-such as overload, short circuit, undervoltage, and overheating safeguards-help maximize motor efficiency and ensure long-term system reliability.

Q: What are the main benefits of using this Schneider VFD?

A: Benefits include efficient, precise motor control, robust protection against electrical faults, easy installation, space-saving design, and versatile communication options-helping businesses reduce energy costs, extend motor life, and streamline industrial processes.
